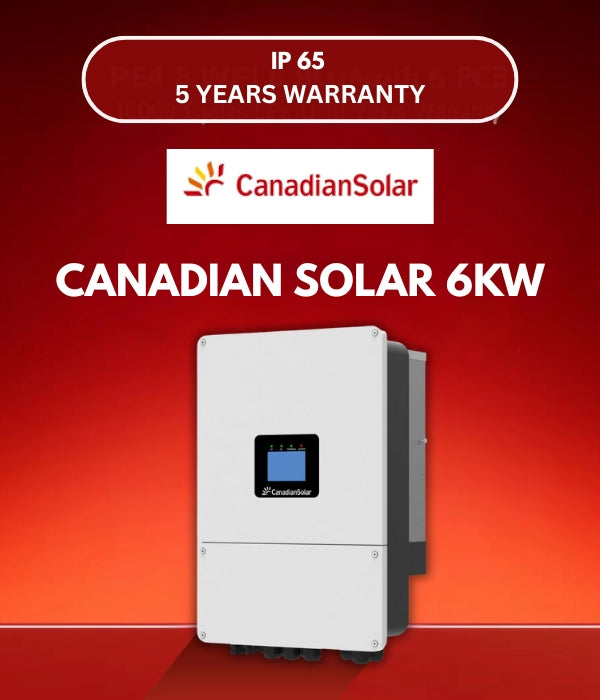

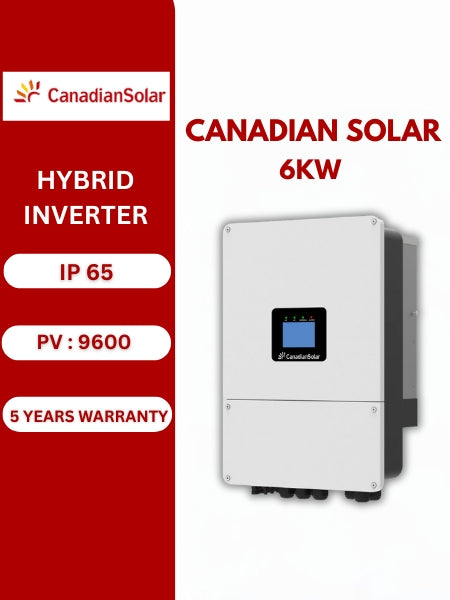

CanadianSolar CSEH-6K-S2201AL-E 6KW Single Phase IP65 Hybrid Solar Inverter With PV 9600W

CanadianSolar CSEH-6K-S2201AL-E 6KW Single Phase IP65 Hybrid Solar Inverter With PV 9600W

Rs.229,999.00
Rs.229,999.00
Sale Sold out
Shipping calculated at checkout.

@gosolarbazar Canadian solar CanadianSolar CSEH-6K-S2201AL-E 6KW Single Phase IP65 Hybrid Solar Inverter With PV 9600W all stock available at Go Solar Bazar

Vendor: Canadian solar

Availability: In stock

Product type: Inverter

Visa Mastercard UnionPay Bank Transfer Easypaisa JazzCash
WhatsApp Order on WhatsApp
100% Genuine
Quality Guarantee
Risk Free
Money Back

Description

CanadianSolar CSEH-6K-S2201AL-E 6KW Single Phase IP65 Hybrid Solar Inverter with PV 9600W

The CanadianSolar CSEH-6K-S2201AL-E is a 6kW single-phase hybrid inverter designed for high performance, reliability, and flexibility in solar energy systems. It supports both lead-acid and lithium-ion (LiFePO₄) batteries, making it ideal for home, commercial, and off-grid power applications.

  • Max. efficiency up to 97.6%
  • Backup with UPS-level switching <4ms
  • 10s of 200% overload capability
  • Support storing energy from diesel generator
  • Compatible with lead-acid and LFP batteries
  • SPD Type II for DC and AC
  • Residual current detection and protection
  • IP66 protection level, strong environmental adaptability
  • Support AFCI function(optional)
Model Name CSEH-6K-S2201AL-E
Battery Data
Battery Type Lead-acid or Lithium-ion
Battery Voltage Range 40-60 V
Nominal Battery Voltage 48 V
Max. Charging Current 135 A
Max. Discharging Current 135 A
Charging Strategy for Li-ion Battery Self-adaption to BMS
Number of Battery Input 1
Communication CAN/RS485
PV String Input Data
Max. DC Input Power 9600 Wp
Max. DC Input Voltage 550 V
Start-up Voltage 110 V
MPPT Voltage Range 110-450 V
Rated DC Input Voltage 360 V
Max. Operating PV Input Current 20 A /20 A
Max. Input Short-Circuit Current 30 A /30 A
No. of MPP Tracker 2
No. of Strings per MPP Tracker 1/1
Output AC (Grid)
Rated Output Power 6000 W
Max. Apparent Output Power 6600 VA
Rated AC Output Current 27.3 A /26.1 A
Max. AC Output Current 30 A /28.7 A
Rated Output Voltage 220 V /230 V
Grid Connection Type L+N+PE
Rated Output Frequency 50 Hz/60 Hz
Power Factor >0.99,0.8 leading to 0.8 lagging
THDi <3%
DC Injection Current <0.5% In
Output AC (Back-up)
Rated Output Power 6 kW
Max. Apparent Output Power 2 times of rated power, 10 s
Back-up Switch Time <4ms
Rated Output Voltage 220 V /230 V
Rated Frequency 50 Hz / 60 Hz
Rated Output Current 27.3 A /26.1 A
Max. Continuous Output Current 30 A
Max. Continuous AC Passthrough Current 30 A
THDv (@Linear Load) <3%
Input AC (Grid)
Input Voltage Range 187-253 V
Max. Input Current 30 A
Frequency Range 45-55 Hz / 55-65 Hz
Input Generator
Max. Input Power 6000 W
Max. Input Current 27.3 A
Rated Input Voltage 220 V / 230 V
Rated Input Frequency 50 Hz /60 Hz
Efficiency
Max. Efficiency 97.60%
EU Efficiency 96.50%
Protection
Integrated DC Switch, PV Insulation Resistance Detection, Residual Current Monitoring , PV Reverse Polarity Protection,Battery Reverse Polarity Protection , Anti-islanding Protection, AC Overcurrent Protection, AC Short Circuit Protection,AC Overvoltage Protection, Thermal Protection , Overvoltage Load Drop Protection, Earth Fault Detection,Ground Fault Current Monitoring , AFCI(Optional)
Surge Protection Level TYPE II(DC), TYPE II(AC)
General Data
Dimension (WxHxD) 374*554*222 mm
Weight 19.5 kg
Installation Method Wall-mounted
Operating Temperature Range -40 to +60℃ (>45℃ derating)
Operating Ambient Humidity 0-100%(non-condensating)
Operating Altitude 3000m (>2000m derating)
Ingress Protection IP 66
Over Voltage Category OVC II(DC), OVC III(AC)
Type of Cooling Intelligent Fan Cooling
Topology Non-isolated
DC connection D4 (PV) / Terminal Block(Battery)
AC connection Terminal Block
Display LCD
Communication CAN/RS485/WIFI
Compliance IEC 62109-1/2; IEC 61000-6-1/2/3/4; IEC 61727; IEC62116; IEC 61683
