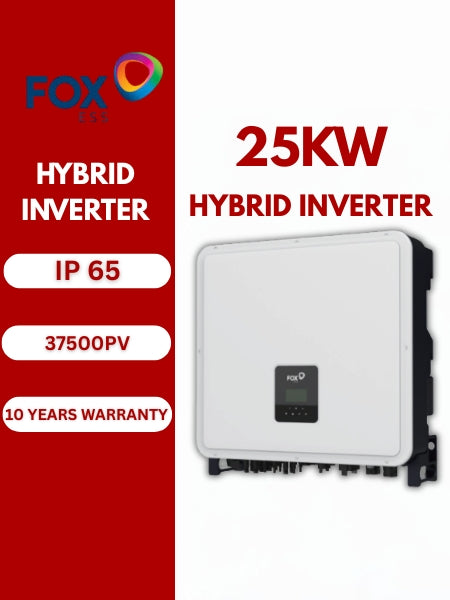

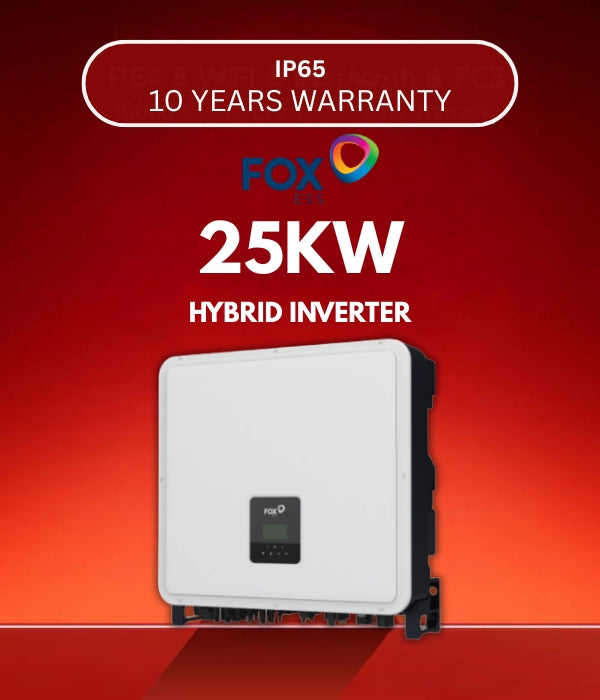

FoxESS H3-Pro 25.0 | 25kW Three-Phase Hybrid Inverter

Rated Output Power: 25,000W (25kW
Max DC Input Power: 37,500W
Efficiency: Max 98.6% | Euro Efficiency: ~98.2%
MPPTs: 3 independent trackers for flexible string design
Max PV Input Voltage: 1,000V
Start-up Voltage: 160V
Dual High-Voltage Battery Ports: Supports scalable FoxESS battery storage
Emergency Power Supply (EPS): Full 25kW backup power
Integrated DC Switch & AFCI Protection: Ensures safety and compliance
Communication Interfaces: RS485, CAN, USB, Wi-Fi (standard), LAN/4G (optional)
Remote Monitoring: Fox Cloud + mobile app
Protection Level: IP65 (for outdoor and indoor use)
Certifications: G99, G100, IEC62109, CE, etc.
Dimensions: Approx. 700 × 480 × 230 mm
Weight: Approx. 55–60 kg
