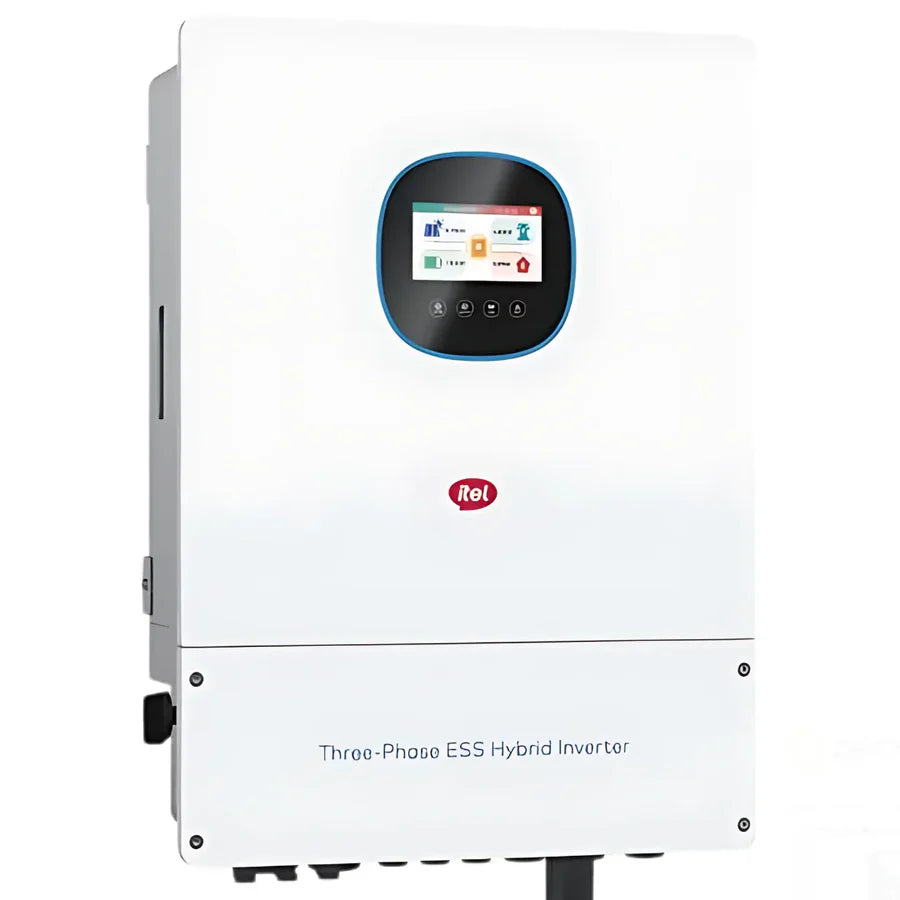

Itel 12KV IP66 3 Phase Hybrid Solar Inverter

Short Specifications:

Model: iTel IHY-12KL3 (12 kW, 3-Phase, IP66)
Rated Output Power: 12,000 W
Max PV Input Power: 24,000 W
Max PV Voltage: 1000 V
MPPT Trackers: Dual (36 A + 18 A)
MPPT Voltage Range: 200 V – 800 V
Battery Type/Voltage: Lead-acid or Lithium, 48 V (40–60 V)
Max Battery Charge/Discharge Current: 250 A / 250 A
On-Grid Output Voltage: 380/400 VAC (3W + N + PE), 13.3 A per phase
Off-Grid (Backup) Output: 12 kW rated; 16 kW peak (15 s)
Efficiency (PV→AC): ≥ 99.9% MPPT, ≥ 98% conversion
Power Factor: 0.8 Leading to 0.8 Lagging
THDi: < 3%
Ingress Protection: IP66 (Dust-tight & Waterproof)
Dimensions: 475 × 683 × 256 mm
Weight: ~38 kg
Operating Temperature: –25 °C to +60 °C (derating above 45 °C)
Parallel Support: Up to 12 units
Cooling: Intelligent Fan Cooling (< 55 dB)
