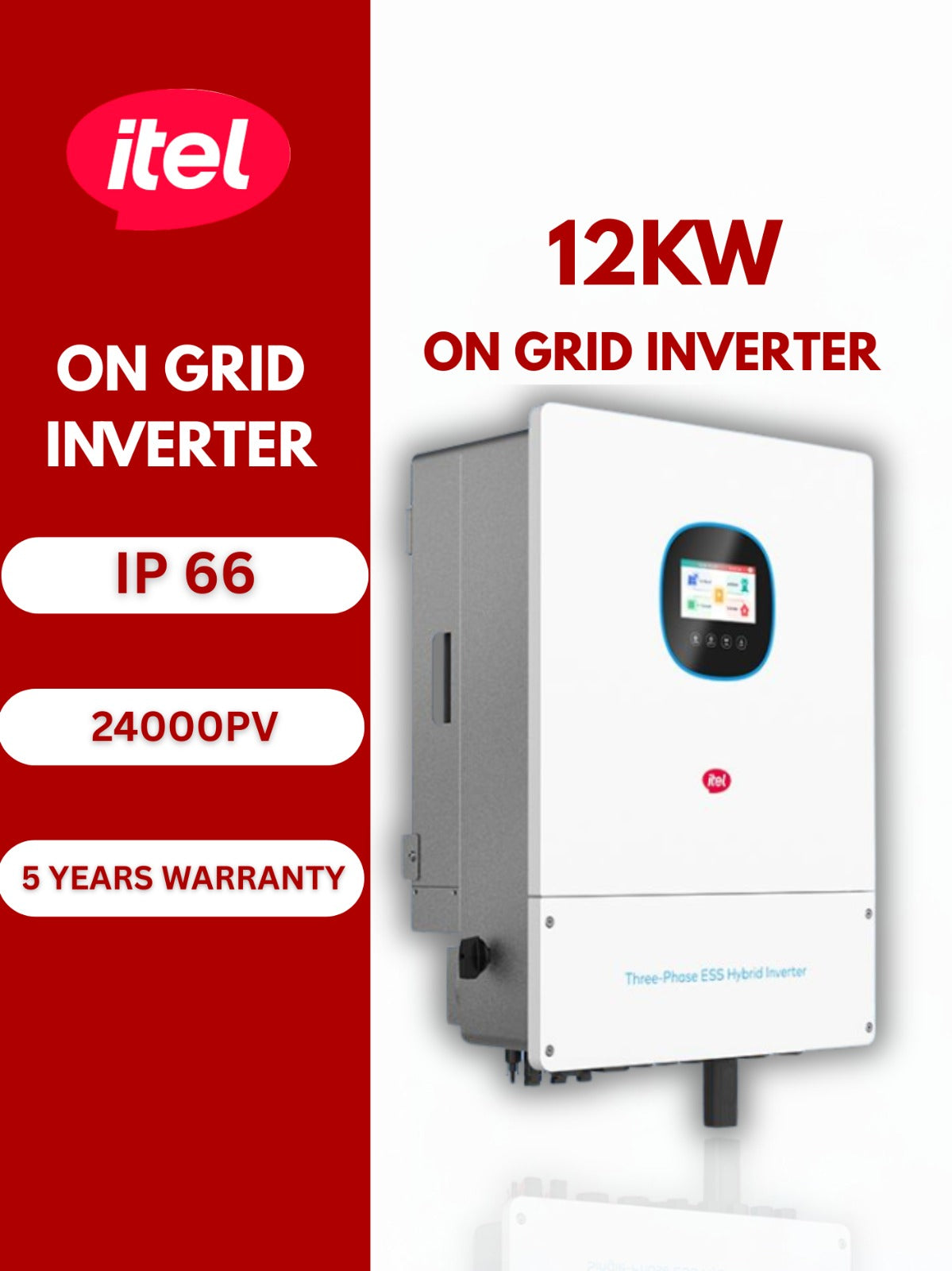

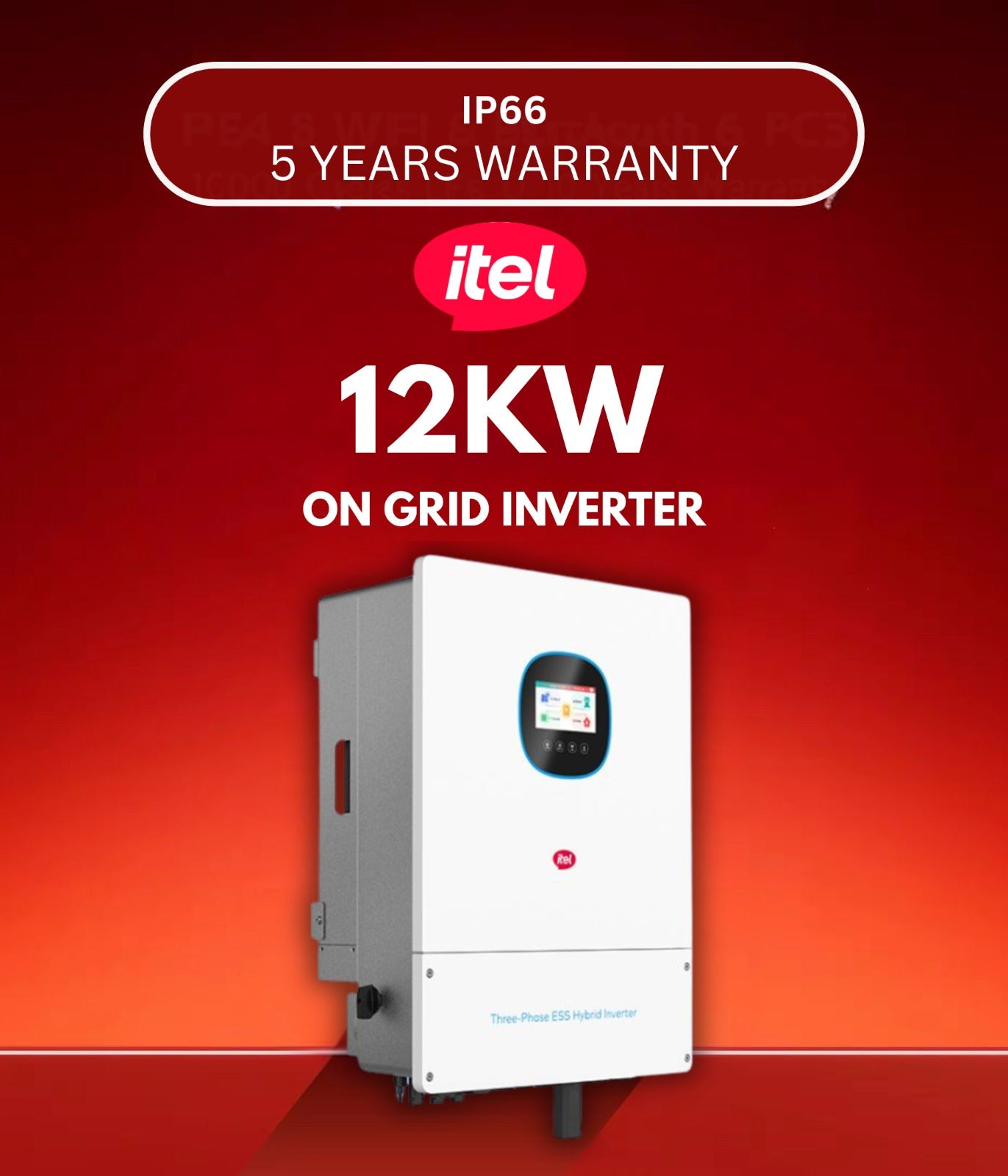

ITEL 12Kw IP66 ONGRID INVERTER

Itel 12kW IP66 On-Grid Inverter – High Power, Weatherproof Efficiency ⚡

The Itel 12kW IP66 On-Grid Inverter (INV-12KL3) is built for large homes, offices, and commercial solar systems, ensuring maximum performance with 98.6% efficiency and 99.9% MPPT tracking. With IP66 waterproof & dustproof protection, it is perfect for reliable outdoor installation.

• 12kW Output | 13.2kVA Max. Power

• Max. PV Input Power: 24000 | Max. PV Voltage: 1000V

• Dual MPPT | Wide Voltage Range (160–960V)

• Max. Input Current: 26A (13A + 13A)

• AC Output Current: 25A | Grid Voltage Range: 160–300V

• Battery Ready: 48V Lithium/Lead-acid | 200A Charge/Discharge

• THD < 3% for clean, stable output

• Cooling: Intelligent Fan | Ingress Protection: IP66

• Smart Monitoring: LCD + RS485, RS232, CAN, WiFi (optional)

• Certified Safety: IEC62109-1/2, IEC61727, IEC62116

• Warranty: 5 Years
