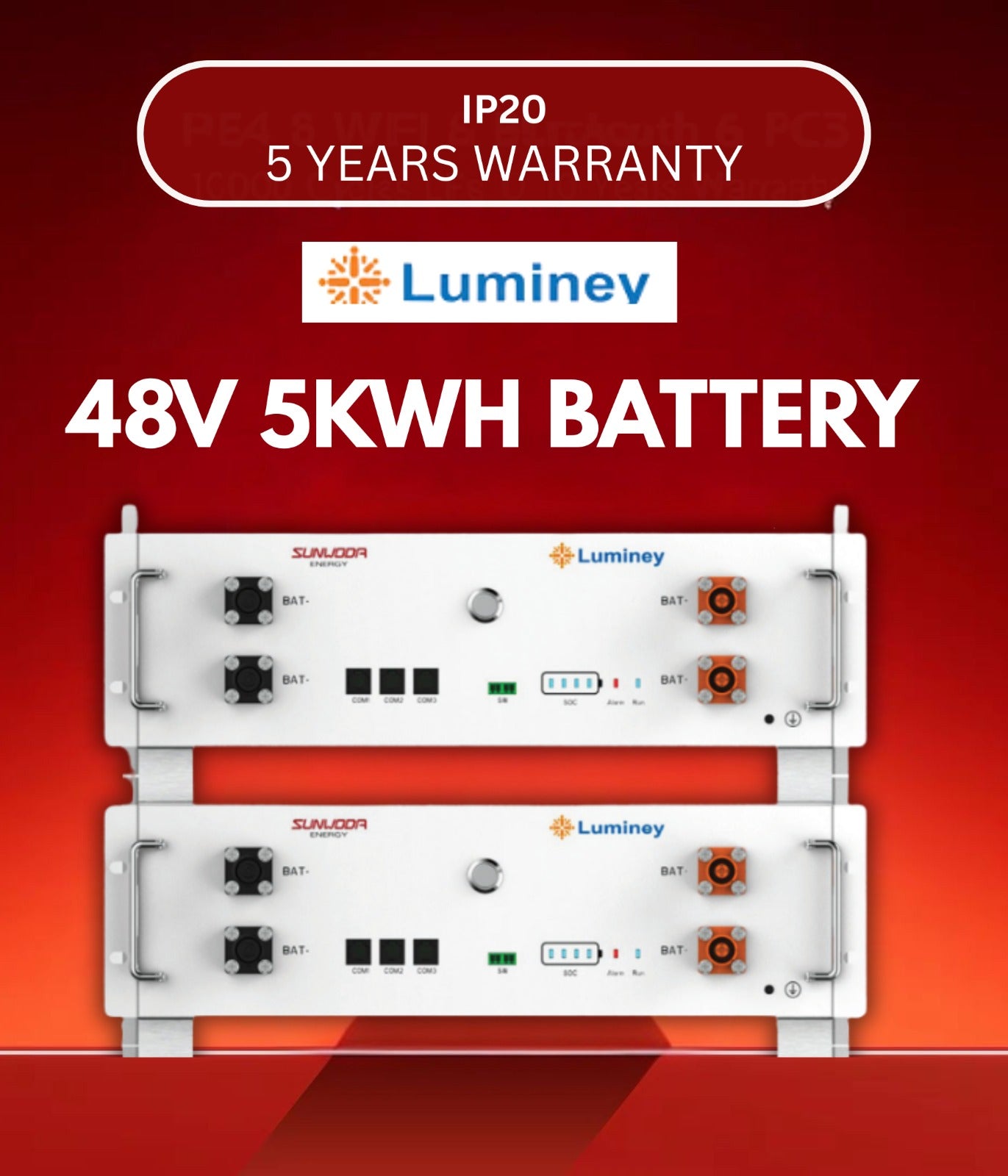

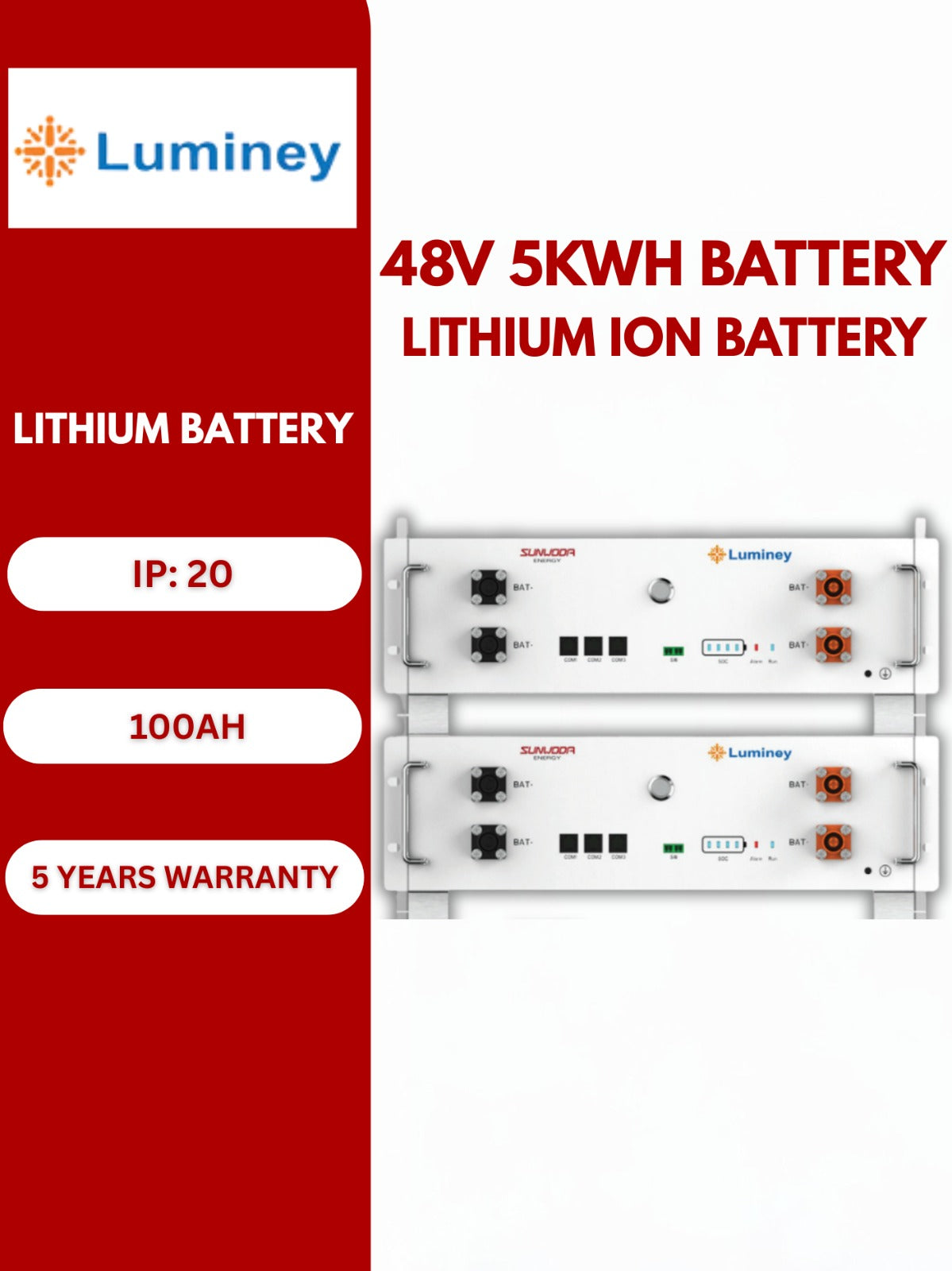

Luminey Sunwoda Energy Lithium Battery

The Luminey Sunwoda Energy Lithium Battery is a next-generation storage solution designed with advanced LiFePO₄ technology for maximum safety, efficiency, and durability. It offers high cycle life, intelligent BMS protection, and modular scalability to meet different energy needs. Perfect for residential, commercial, and industrial solar systems, it ensures reliable backup power, optimized self-consumption, and long-term performance.

• Brand: Luminey / Sunwoda Energy
• Model: Atrix-5
• Product: Lithium Battery (Energy Storage System)
• Type: Lithium Iron Phosphate (LiFePO₄)
• Nominal Voltage: 51.2V
• Capacity: 100Ah (5.12kWh)
• Depth of Discharge: 100%
• Cycle Life: \~2000 cycles at 100% DoD
• Round-Trip Efficiency: >98%
• Charge/Discharge Current: 50A rated, 100A maximum
• Communication: CAN 2.0 / RS485
• Scalability: Up to 8 units in parallel (≈40kWh)
• Enclosure Rating: IP20 (indoor use)
• Operating Temperature: -10°C to +50°C
• Certifications: IEC 62619, CE, UL 1973, FCC, UL 9540A, UN 38.3
• Warranty:5 Years
