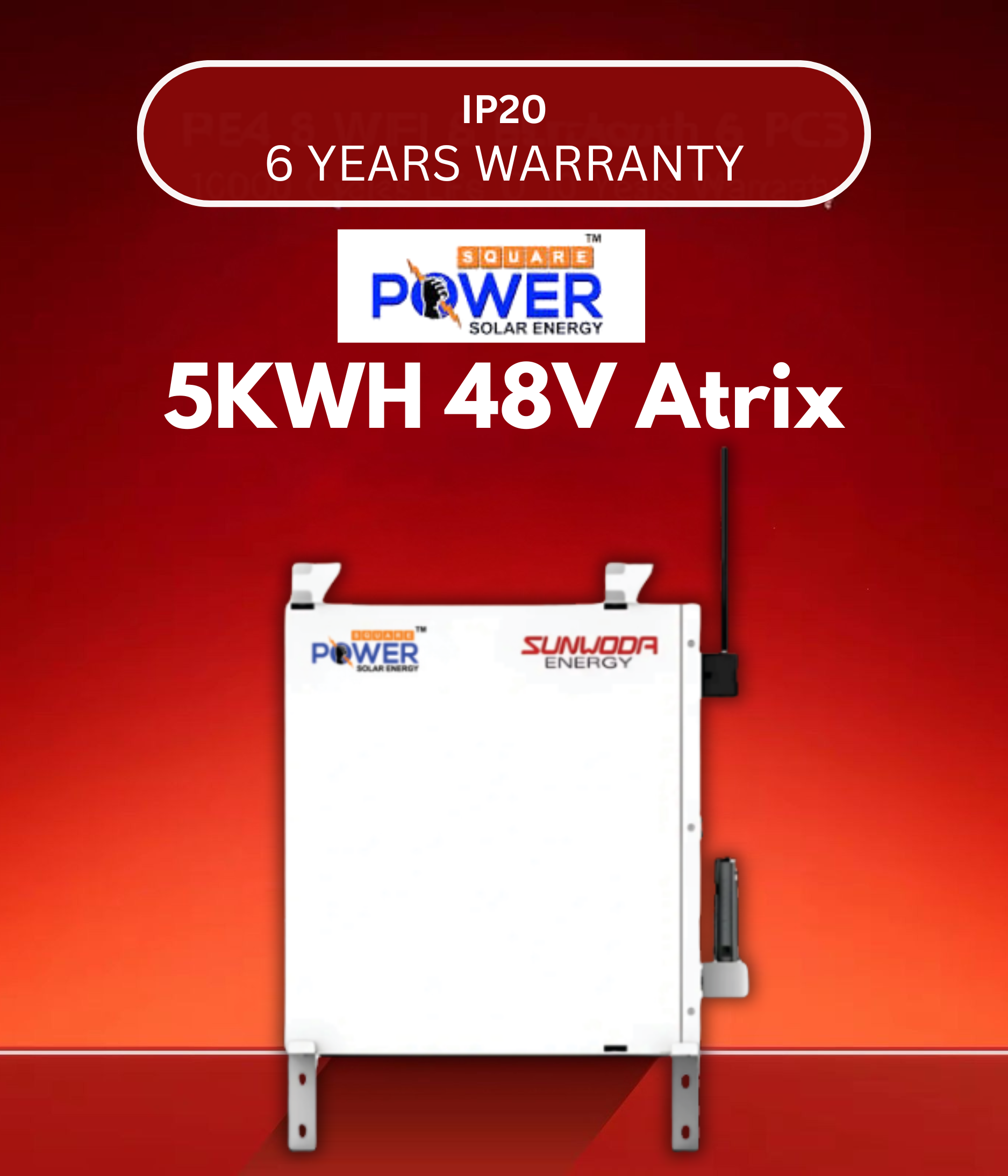

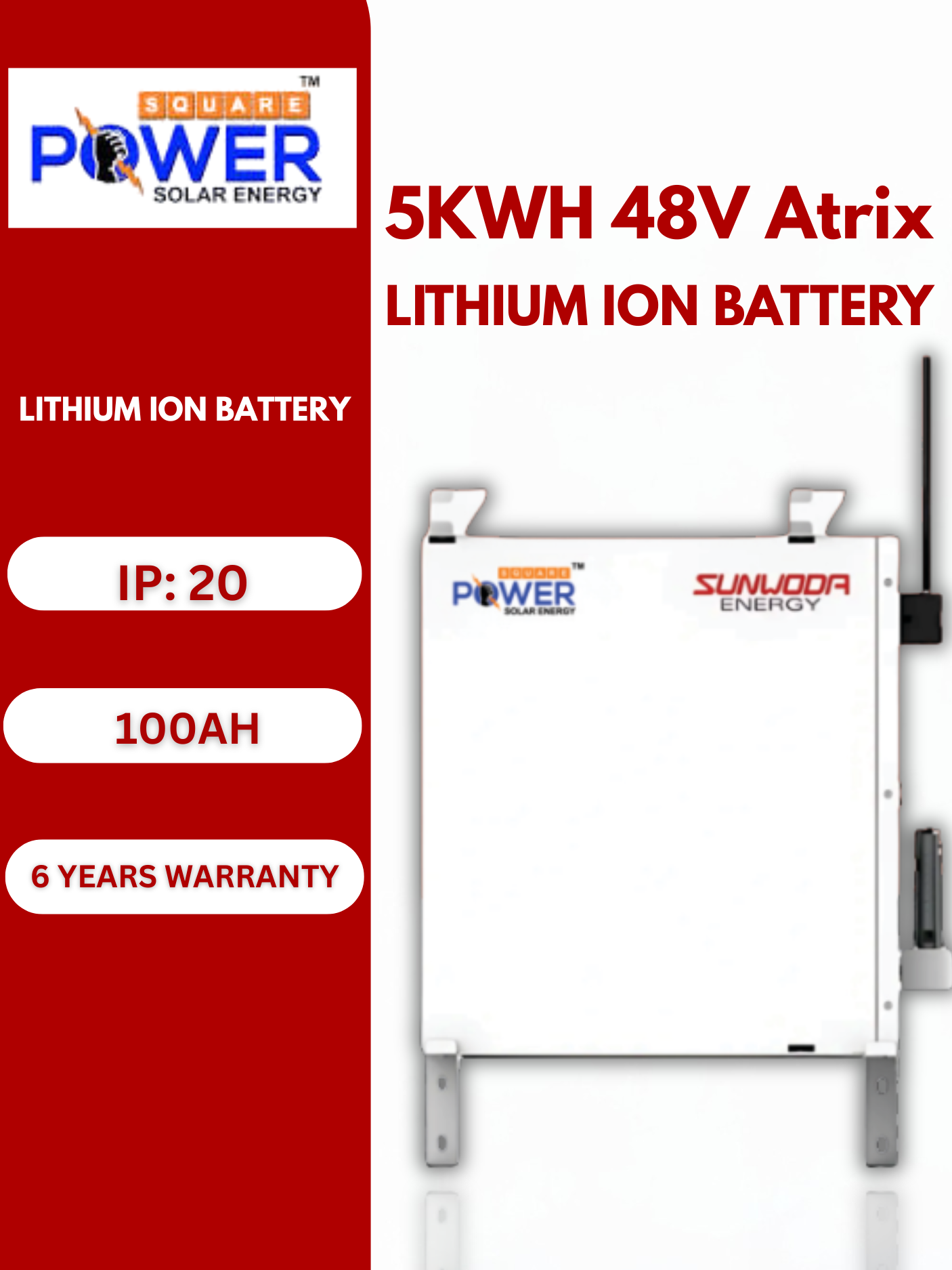

Power Square Lithium Ion Battery – 51.2V 5.2KWH Sunwoda

Smart Power Voltix Lithium Ion Battery – 6000 cycles- Wall Mounted Version

————–

Modular design, wall mounted installation

Plug and play, save time and effort, cost-effective

Support 100% DOD, low-temperature operation (-10°C) (optional).

Real-time data acquisition, real-time monitoring, support

remote operation and upgrade (optional).

——————————————-

Product specifications

Model Atrix Smart-5 Atrix Smart-10 Atrix Smart-15 Atrix Smart-20

Nominal energy 5kWh 10kWh 15kWh 20kWh

Usable energy (100% DOD) 5kWh 10kWh 15kWh 20kWh

Rated voltage 51.2V 51.2V 51.2V 51.2V

Charge/discharge cut off voltage 44.8V~55.2V 44.8V~55.2V 44.8V~55.2V 44.8V~55.2V

Roundtrip efficiency >98% >98% >98% >98%

Rated charge/discharge current 50A/50A 100A/100А 150A/150A 200A/200А

Max. charge/discharge current 100A/100А 180A/180A 200A/200A 200A/200A

Communication interface CAN 2.0/RS485

Operating temperature Discharging:-4°F to 122°F (-20°C to 50°C), Charging:32°F to 122°F (0°C to 50°C)

Dimensions (W*H*D, mm) 482*135*433(Single battery pack)

Weight 45kg/90kg/135kg/180kg

Enclosure protection rating IP20

Warranty 6 years

Certifications IEC62619/CE/UN38.3

* DC Usable Energy, Test conditions: 100% DOD, 0.2C charge & discharge at 25°C.

* Charge/discharge derating occurs when the operating temperature from -10°C to 5°C.
